vortexknology, airfoils

Gary Wards MX2 left wing Airfoil

Shape

Airfoils are shaped to perform.  In other words, cause an action with airflow that will in turn  cause a reaction.  (Newton should come to mind)


The basic shape of an airfoil is mostly flat on the bottom and curved on the top.  Airfoils have a Chord Line. This an imaginary line that connects the leading and trailing edges of an airfoil.


Any departure from that line is called Camber. Thus, an airfoil as described above is considered a positive camber airfoil.

If the camber is larger on the bottom it is negative camber. And if the distance is nearly equal on both sides, it is called zero camber (aerobatic aircraft such as the photo of Gary Wards MX2 to the left)


Bernoulli's Principle

Daniel Bernoulli  was a Swiss Mathematician and Physicist.  He studied fluid dynamics and noticed that a fluid would increase its speed to move over a curved surface.  He also discovered that as the speed of the fluid increased, the pressure would decrease.




Experiment

Step 1

Hold a piece of 8.5"x 11" sheet of paper on the 8.5" sides and allow the 11" to droop away from you. Now blow across the curved upper surface of the paper. What happened?


Step 2

Slightly bend and sharply bend the tip of the 11" side furthest away from you (about one or two inches from the end) and blow across the curved surface again. Any changes in the way the paper responded?

Find out more

BERnoulli's Principle

ENERGY

What is Bernoulli's Principle

What is Bernoulli's Principle

  • Kinetic Energy: The energy an object has just by being in motion....KE=1/2MV^2
  • M=Mass, V=Velocity



  • Potential Energy: The energy an object can release based on its position relative to other objects and/or height above the ground.
  • PE=MGH, M=Mass, G=Gravity (9.8m/s^2), H=Height



What is Bernoulli's Principle

What is Bernoulli's Principle

What is Bernoulli's Principle

  • With the understanding that Kinetic Energy is energy in motion, lets look at airflow over the airfoil.
  • If we replace the (M) in the KE equation with the Greek letter Rho (ρ), we have the formula 1/2ρv^2
  • The next is area.
  • In order to see how this equation works, it can be simplified to the following:

A1V1=A2V2

A=Area

  • Example: using general knowledge measurement's,

10sq.ft(100mph)=5sq.ft(V2)

V2=10sq.ft(100mph)/5sq.ft

V2=200mph

Notice the velocity change




Lift

What is Bernoulli's Principle

Lift

Energy cannot be created or destroyed. It is transformed from one form of energy to another. Therefore, lift is generated not created.

  • Lift=Cl1/2ρV^2S
  • Cl=Coefficient of Lift

Cl is determined by the type airfoil and the Angle of Attack (AoA)

  • S=Wing Area

Determined by wing configuration., i.e. Flap and/or Flap and Slat setting

Do you see the Kinetic Energy formula in the Lift equation? KE=1/2MV^2

1/2ρV^2, Mass has been replaced with air density, ρ.


With the knowledge of Bernoulli's Principle and now the lift equation, see if you can spot bernoullis principle in action.

Lift

.

.

.

vortexknology, Pressure and Temperature

Cloud on The Wing

Have you ever seen:

  1. A plane that has white vapor form around it or over the wings?
  2. An airliner, especially on approach or takeoff, just after a rainstorm and/or humid conditions?
  3. Or a fighter jet at an airshow in a tight turn?


Why does this happen?

If you have ever cleaned a keyboard with compressed air or released propane from a cylinder, you probably noticed the can get cold and the cylinder ice up.  Magic?


In relating gas pressure and temperature, P1/T1=P2/T2


When a gas is compressed from large to small volume area, the molecules are forced into a container which causes them to accelerate due to higher rates of molecular impacts with the container and each other. This change in speed causes heat.


Conversely, when a compressed gas is released to a greater volume area, the molecule's have a lot more room to move and expand. This results in a decrease in pressure and temperature.


If an equal volume of air is accelerated....say the air passing over the upper surface of a wing, What happens to the pressure? It decreases. This means the temperature decreases. If the temperature decreases, can the equal volume of air hold the same amount of moisture?

No. That's why visible vapor forms around aircraft wings.







Learn More

The following video by flugsnug.com shows the condensation above and behind the wings and in the engines. Keep in mind that propellers are rotating wings. This type of condensation is  called prop screws.

The swirling motion of the visible moisture off the wings are called vortices. They are caused by the high pressure below the wing curling up and around the low pressure above the wings. This causes drag. To help reduce the amount of drag, winglets are added.

Notice also that the vortices cease once the wing is no longer generating lift.

flungsnug.com video below

https://www.youtube.com/watch?v=dfY5ZQDzC5s

Clouds on wings

vortexknology, flaps and slats

NACA

High Lift Devices

High Lift Devices

Wings come in many shapes and sizes. In fact, there is a number for each shape of wing design. That number is known as the NACA number. Up until recently there were only four numbers in the NACA number but now some have five. To learn more, click the links below.


http://airfoiltools.com/airfoil/naca4digit


http://akiti.ca/NACA4Bkgrnd.html

High Lift Devices

High Lift Devices

High Lift Devices

The C-5 Galaxy can take off with a max gross weight of 840,000lbs. It holds 332,500lbs of fuel and the basic empty weight is roughly 375,000lbs. This weight varies with the tail number and configuration of the plane.

Do you think the C5 has a high speed wing or a high lift wing?

It has a Low Speed/High Lift wing.

In the following video, Watch for the following and think about the crews actions in the cockpit. Watch the wings as the C-5 accelerates and how they go from drooped to straight to flexed as they take the weight of the C-5. Notice the Slats on the leading edge.

  • Advancing Throttles Now
  • The pilots advance the throttles and the engineer starts the clock...15, 20, TIME
  • At 25 seconds (TIME), the pilots release the brakes and the plane begins to accelerate.
  • At certain time and distance intervals the plane has to be going a certain calculated speed or faster. If not, the takeoff is rejected.
  • My experience on the C-5 at 840,000lbs in Frankfurt Germany at night in the rain...Brakes release at TIME and the plane sits there for a second. Roll, roll and roll...finally V1, Roll, and roll some more, V2 rotate. used 11500 ft of a 13000ft. rwy



C-5B Takeoff

Flaps

High Lift Devices

Angle of Attack (AoA)

Flaps are devices on the trailing edge of the wing that are designed to increase lift. However, when lift is increased, Drag too is increased.  The drag caused by lift is known as induced drag.

Lets talk about how flaps help with lift.

When the flaps are up the aircraft is in the clean configuration. With the flaps and gear down the plane is in the dirty configuration.

The following is an example of Flap and Slat Extension on the C-5 Galaxy.

  • When the flap handle is moved to 40%, the flaps extend to 40% on the trailing edge  wing and the slats extend to full down position on the leading edge of the wing. Because the flaps move back and down, the wing area has increased. Lift=Cl1/2ρV^2S
  • Recall the Lift equation where S=Wing Area.
  • If the wing area is increased and the amount of lift required remains unchanged, what has to change in the formula? Velocity!
  • The velocity decreases because the wing area increased.
  • For short Field Takeoffs, 62.5% flap setting is used and for landing, Flaps Landing.
  • *********************************

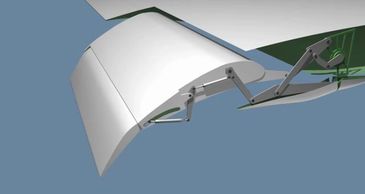

  • The following video is a sequence of the Boeing 727 Slotted Fowler Flaps and slats in operation.
  • Notice the Screw jack that moves the flaps. Look at the cover as the flaps retract. Now you know why planes have those extensions on the trailing edges of the wing.

727 Flaps and Slat Operation

Angle of Attack (AoA)

Angle of Attack (AoA)

Angle of Attack (AoA)

AoA

Angle of Attack (AoA)

Future

With the recent news about the Boeing 737Max and the two fatal crashes,  nearly everyone who has seen a story about the max has heard the term Angle of Attack.  What is the Angle of Attack.

Before explaining what AoA is, some key terms need to be defined.

  • Angle of incidence: The angle the wing of an airplane is mounted to the fuselage.
  • Relative wind: The direction of wind over an airfoil relative to the aircrafts movement.
  • Chord Line: The imaginary line from the leading edge to the trailing edge of the wing.
  • AoA:  The angle of attack is the angle between the chord line of the wing and the relative wind.

Why is A0A so important?

Have you really ever watched a plane land? The nose is up but not climbing? Why?

The flaps are down and if equipped, the slats too are down.

How did the chord line change?

 What happened to the camber?


Future

Angle of Attack (AoA)

Future

Future
